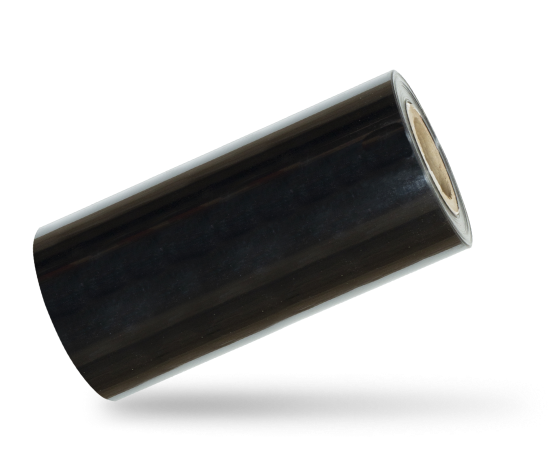

RIGID PVC FILM
Polyvinyl chloride (PVC) is a type of plastic that is widely used in the industry. This product is used in the packaging of various industries such as pharmaceutical, printing, stationery, cosmetics, food and freezer industries in transparent and colored form. It plays a prominent role. Hard PVC roll is produced both in roll and sheet form. Also, the laminated product (PVC-PE) of this plastic directly and in contact with cold and frozen food products as well as pharmaceutical products has been noticed significantly in the food and pharmaceutical industry.
| Physical Properties | ASTM test | unit | Value |
|---|---|---|---|
|
Density |
DIN53479 |
gr/cm3 |
1.34- 1.4 |
|
Impact Strength |
DIN53448 |
Kj/m2 |
300< |
|
Tensile Strength |
DIN53455 |
N/mm2 |
48< |
|
Thickness Range |
DIN53370 |
mic |
(150-1200)+3%
|
|
Shrinkage (TD/MD) |
DIN53460 |
- |
(2+/7-) |
|
Vapor Transmission |
DIN 53377 |
gr/m2 x 24h |
3.0 |
|
O2 Transmission |
DIN53122 |
cm3/m2x24hxatm |
12 |
|
VCM content |
GC |
PPM |
1> |
- NIAM-MED

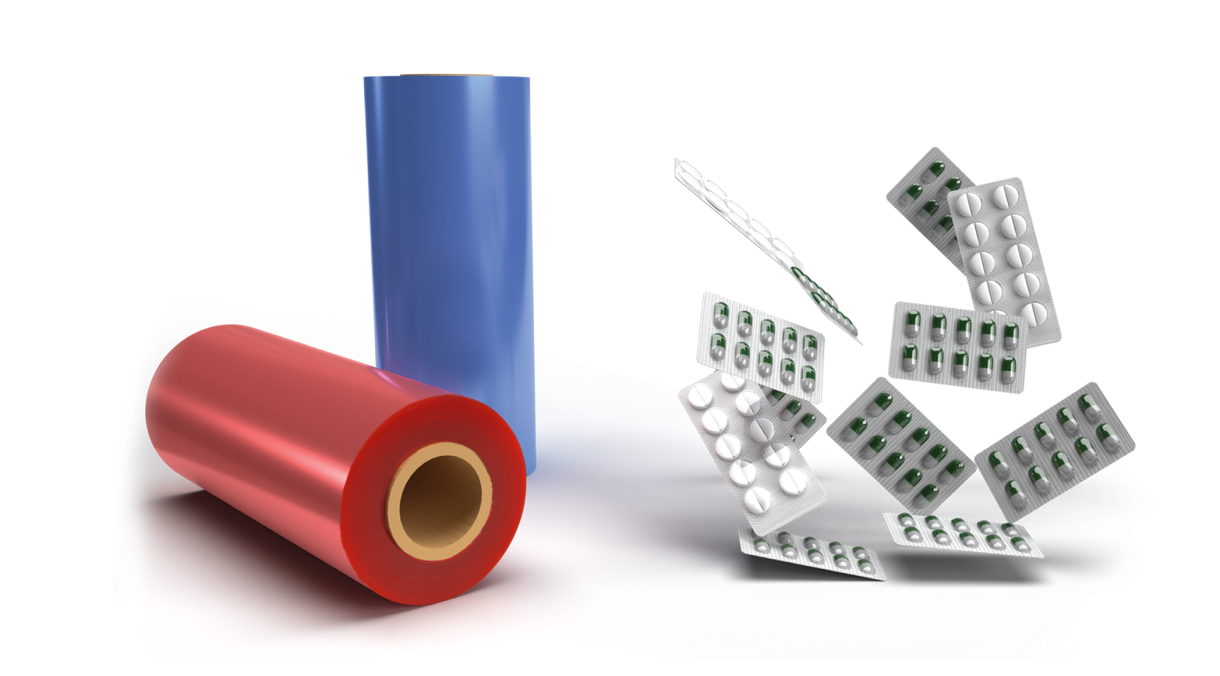

Single-layer hard PVC film for packing tablets and capsules
- NIAM-PACK
Single-layer hard PVC film for vacuum forming with high stretching depth and excellent transparency
- NIAM-FOLD
Single-layer hard PVC film in various colors for stationery and decoration
- NIAM-COOLING TOWER
Single-layer hard PVC film for packing cooling towers with excellent resistance to atmospheric conditions, UV rays and microbial attacks with impact strength and high service temperature.
